Whilst the rest of us have had a rather spiffing weekend’s gaming with PlayStation Move, the chaps over at iFixit have a very different way of getting their kicks and instead of taking on family members at table tennis or gladitorial combat, have instead busied themselves with taking Sony’s new controller to pieces in one of their fantastic teardowns.
Amongst the internals of the controller there is a processor, accelerometer, gyroscope, Bluetooth transmitter, vibrating motor, and even a MEMS compass. This, of course is no surprise as all of this has been known for some time, although it is quite an achievement by Sony to cram all the tech which appears in the most expensive smartphone and still sell the device for £35 or less.

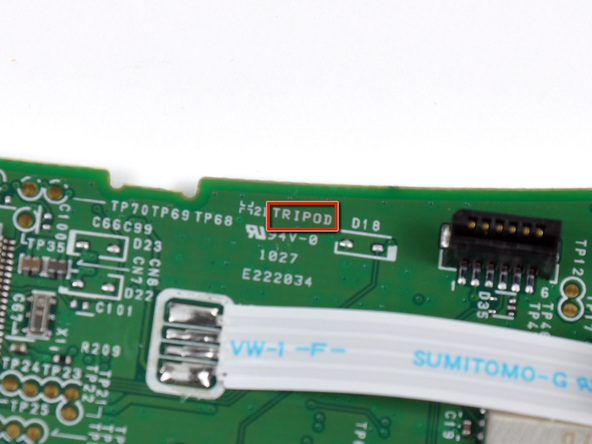

Although there are few surprises inside the Move controller, there was what appeared to be a reference to an iPod on the circuit board, however once a further component was removed the full text of TRIPOD was revealed.
Other points of note, are that the battery is fully removable (and therefore replaceable) without the need for any soldering skills, and that the LED which lights up the glowing sphere is heatsunk to aid brightness and longevity.
Note: We don’t recommend taking your equipment to pieces as you’ll probably either break something or invalidate your warranty, but its nice to know if your Move controller does breakdown for some reason not covered by the warranty that according to iFixit, it’s easily repairable.
